CNC High-speed Silent Stripping and Ending Machine with high-precision control template and transmission structure

Name: CNC Highspeed Silent Stripping and Ending Machine with highprecision control template and transmission structure
Brand: HOOHA
Price: 3257 USD

Wholesale CNC High-speed Silent Stripping and Ending Machine with high-precision control template and transmission structure from china suppliers

Brand Name : HOOHA

Model Number : HH-2.0TS

Certification : CE SGS Sira

Place of Origin : Guangdong,China

MOQ : 1

Price : USD3257

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10sets/per month

Delivery Time : 60

Packaging Details : PE PLASTIC

Model : HH-2.0TS

Work capacity : Uninterrupted wire stripping and terminal pressing

Applicable wire diameter : AWG#36--AWG#18

Capacity : ２.0T

Stroke : 30mm

Stripping length : １.0mm--7.0mm

Air pressure : 3-5kgf (need clean and dry air)

External dimensions : 530x400x830mm

Weight : 70kg

Contact Now

Product Information

CNC High-speed Silent Stripping and Ending Machine with high-precision control template and transmission structure

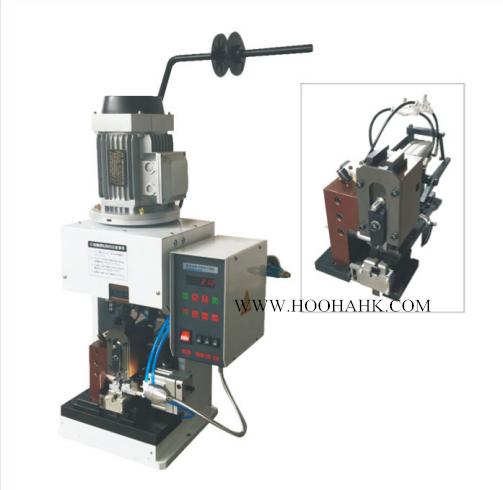

HH-2.0TS CNC High-speed Silent Stripping and Ending Machine

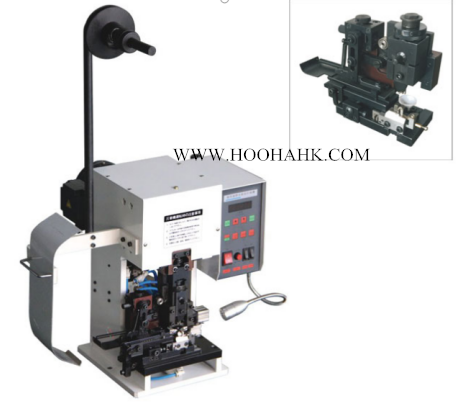

HH-2.0TS+Z CNC High-speed Silent Stripping and Ending Machine

CNC type high-speed silent continuous peeling and tapping machine adopts advanced frequency conversion technology, precise control of variable speed into motor, equipped with high-precision control template and transmission structure, so that the peeling and tapping is completed at one time. It has the characteristics of low noise, low power consumption, high speed and easy operation.

Feature Descriptions

1.for very fine wire, multi-core shielded wire and other complex wire has a significant effect.

2.The stripping action of this machine is driven by cylinder, with fast action speed and accurate positioning.

3.The scrap after stripping is handled by vacuum suction, which is clean, environmental friendly, convenient and simple.

4.The press is driven by gear reduction, and the pressure is highly accurate.

5.For raw and familiar operators, the machine can change the overall speed through the operation panel so as to adapt to the operator.

6.The pneumatic part of this machine adopts all the brand components such as Taiwan Golden Instrument, Airlake, Japan SMC, etc.

7.Our company also has developed for straight terminals: (HH-2.0TS+Z automatic silent straight peeling and terminating machine)

Specifications

Model	HH-2.0TS
Work capacity	Uninterrupted wire stripping and terminal pressing
Power	AC 110/220V 50Hz/60Hz single-phase
Applicable wire diameter	AWG#36--AWG#18 (Varies according to wire material)
Control mode	AV,AVS,AVSS,CAVUS,KV,KIV,UL,IV Teflon, fiber yarn, etc.
Capacity	２.0T
Stroke	30mm
Stripping length	１.0mm--7.0mm
Cutting error	0.05mm--0.1mm
Position error	0.05mm--0.1mm
Air pressure	3-5kgf (need clean and dry air)
External dimensions	530x400x830mm
Weight	70kg
