Cat5e Cat6 Lan Cable Making Machine , Network Cable Extrusion Machine

Name: Cat5e Cat6 Lan Cable Making Machine Network Cable Extrusion Machine
Brand: HOOHA
Price: 71000 USD

Wholesale Cat5e Cat6 Lan Cable Making Machine , Network Cable Extrusion Machine from china suppliers

Brand Name : HOOHA

Model Number : HH-80

Certification : CE/SGS/ISO

Place of Origin : China

MOQ : 1

Price : 71000USD

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10unit/ month

Delivery Time : 60

Packaging Details : Film packing

Name : Cat5e Cat6 Lan Cable Making Machine

Model : HH-80

Dimension : 26*3.5*3.5 m

Core wire material : HDPE

Weight : 4500kg

Cross Sectional Area : 1~10 square mm

Usage : Extruding

Conductor material : Solid copper

Jacket material : LSZH/PVC

Extrusion Speed : Max 300 m/min

Contact Now

Product Description

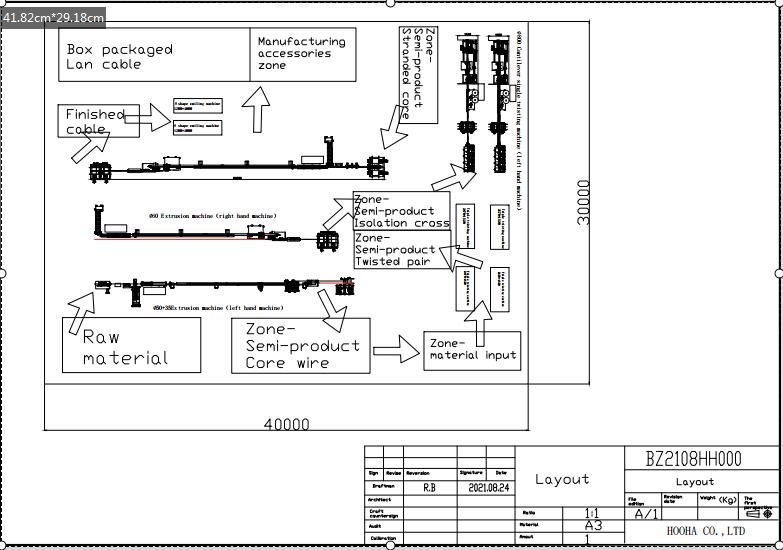

Cat5e Cat6 Lan Cable Production Line

NO:	Step	Machine Name	Suitable Dia	Line speed	LxWxH	KW/Hr
1	Insulation	PLC 50+35mm PVC/LSZH Wire Insulation line	0.5-2.0mm	450 m/min	20m x 2.5m x 2.8m	30 KW
2	Pair twist	PLC 500 triple twist machine	0.5mm-2.0mm	60m/min	3.2 m x 1.6 m x 2 m	10 KW
3	Shielding cross extruding	60 cross-filler extrusion machine	4.0-4.4mm	200-300m/min	20m x 4m x 4m	40kw
3	Cable twist	PLC 800 cantilever single twist machine(UTP)	0.6mm-3.0mm	100m/min	10m x 2m x 1.8m	20 kw
4	Sheath	PLC 80 PVC/LSZH Sheathing Machine	2-20mm	150 m/min	25m x 3m x 3.5m	60 KW
5	Packing (305m/coil)	Lan cable net type packing machine	2-12mm	150m/min	10m x 1.5m x 1.8m	10 KW

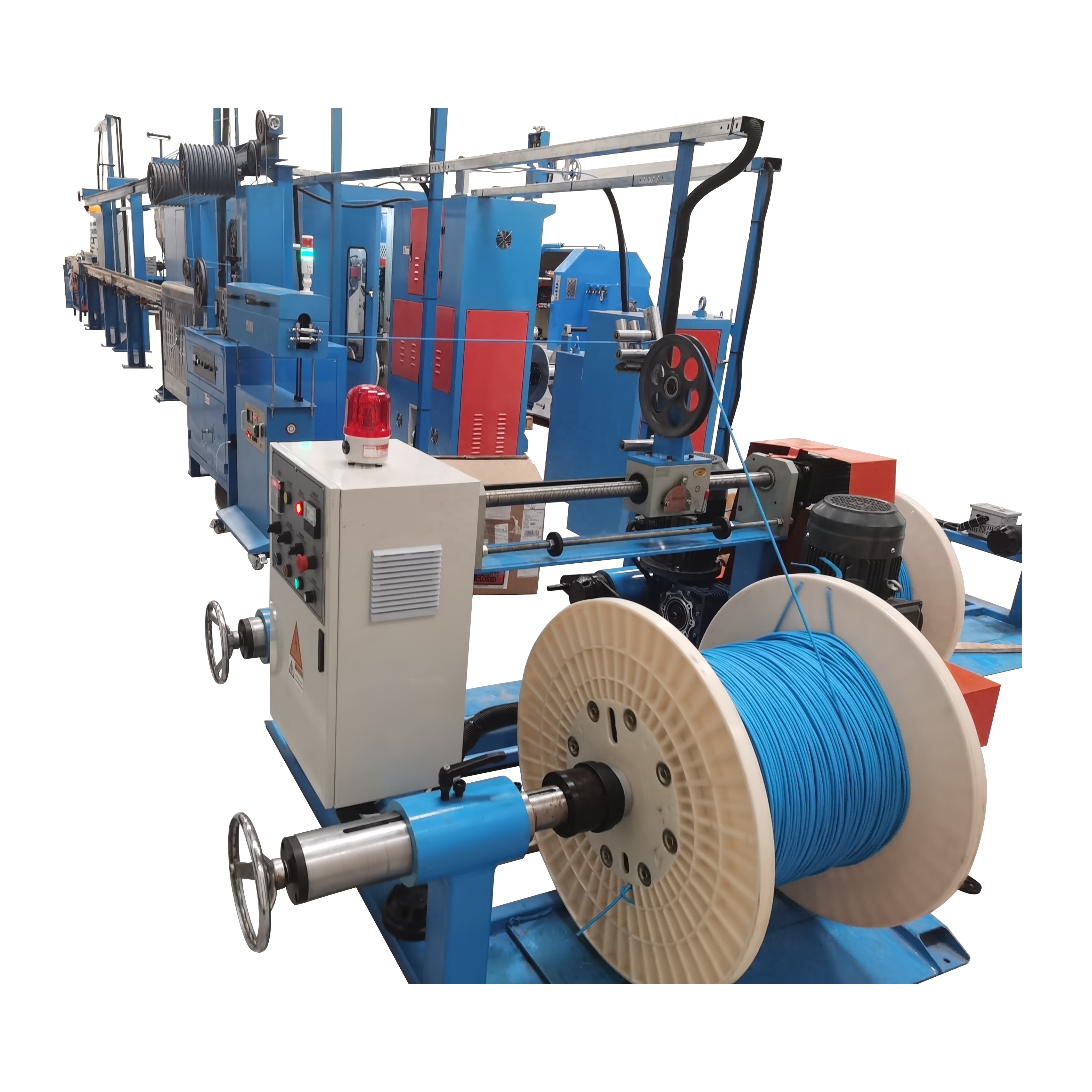

Step 1

Cat5e Cat6 Lan Cable Making Machine , Network Cable Extrusion Machine

General Parameters

Inlet Wire Diameter: 0.5～3 mm
Finished Wire Diameter: 1～5 mm
Cross Sectional Area: 0.5～2.5 square mm
Extrusion Speed: Max 500 m/min
Extrusion Capacity: 80 kg/h
Installed Capacity : 45 kva
Voltage: 380V, can be customized
Weight: 3500 kg
Measurement (L*W*H): 20*3*3 m

Step 2

Step 3

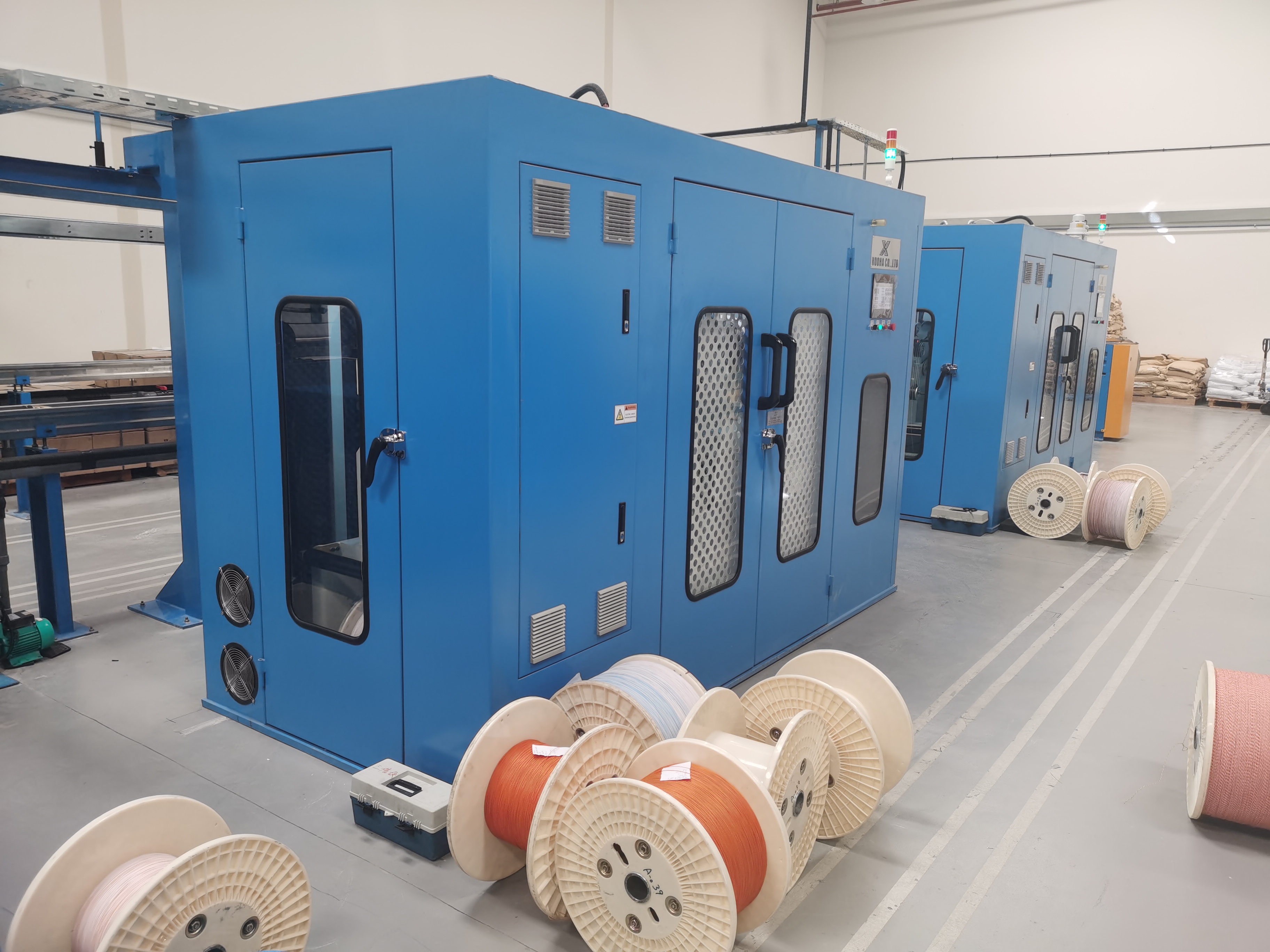

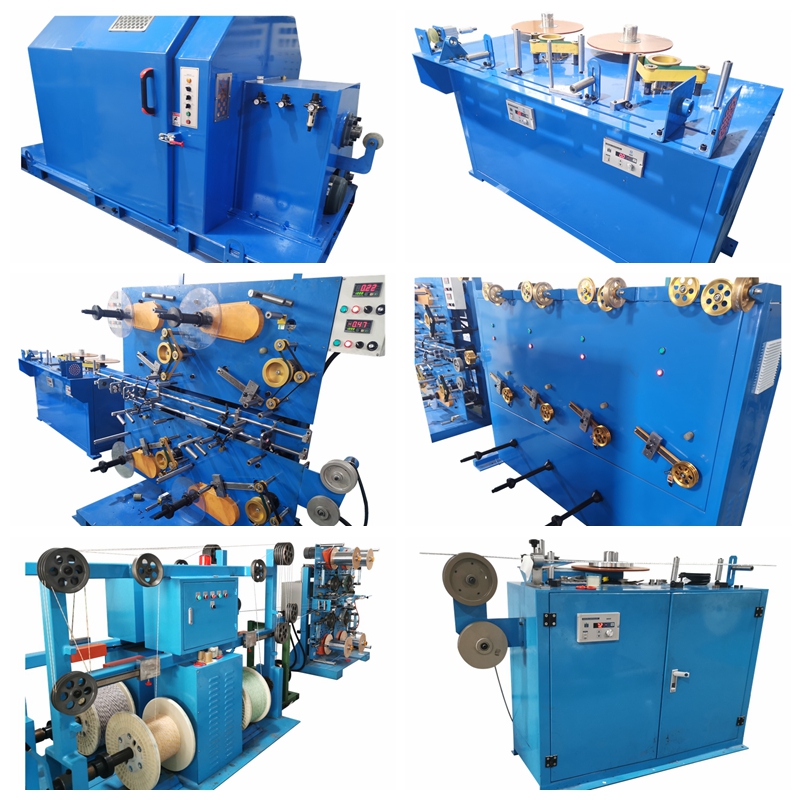

PLC 500 triple twist machine

Main part:

∮500 Outside active pay off
∮500 Back twist single stranding machine
∮200 External servo tractor
∮500~630 twisted wire machine
Electric Control cabinet

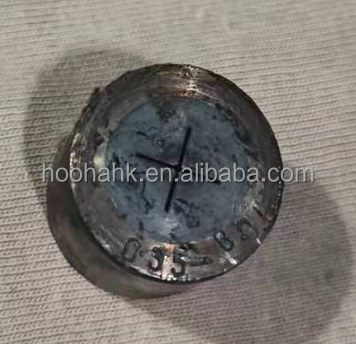

60 cross-filler extrusion machine

Application
This equipment is applicable for extruding cable divider (cross filler) which is used for network cable production.

Step 4

Step 5

PLC 800 cantilever single twist machine(UTP)

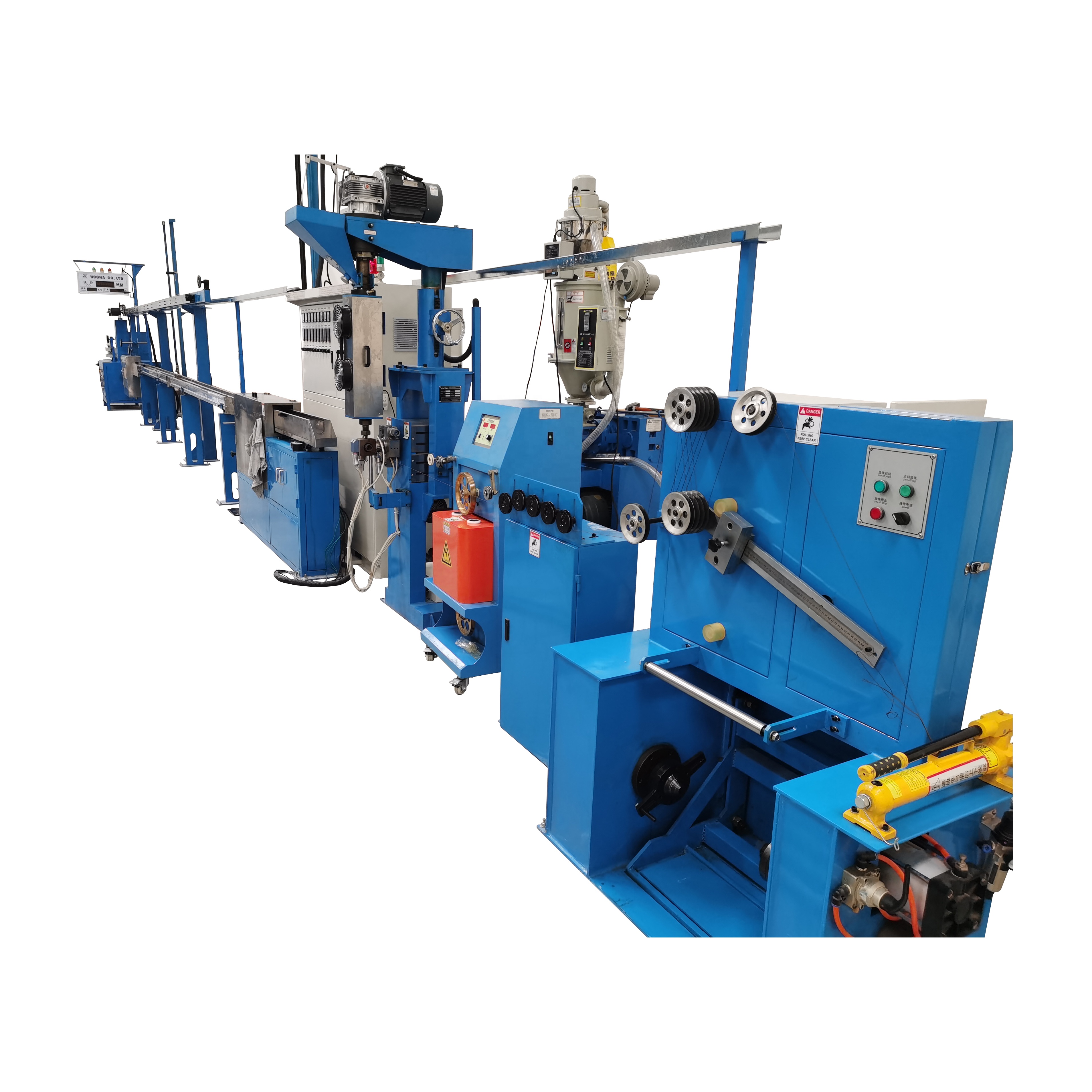

PLC 80 PVC/LSZH Sheathing Machine

1	Inlet Wire Diameter	1～15 mm
2	Finished Wire Diameter	2～20 mm
3	Cross Sectional Area	1～10 square mm
4	Extrusion Speed	Max 300 m/min
5	Extrusion Capacity	200 kg/h
6	Installed Capacity	65 kva
7	Voltage	380V, can be customized
8	Weight	4500 kg
9	Measurement (LWH)	263.53.5 m

Step 6

1	Applicable Wire Diameter	1.8～8 mm
2	Coil Inner Diameter	200 mm
3	Coil Outer Diameter	Max 500 mm
4	Coil Height	160～230 mm
5	Wire Length per Coil	100-305 m
6	Rotation Speed	Max 250 rpm
7	Weight	1600 kg
8	Measurement (LWH)	82.22 m

The Wire Samples

Cat 5e Lan Cable

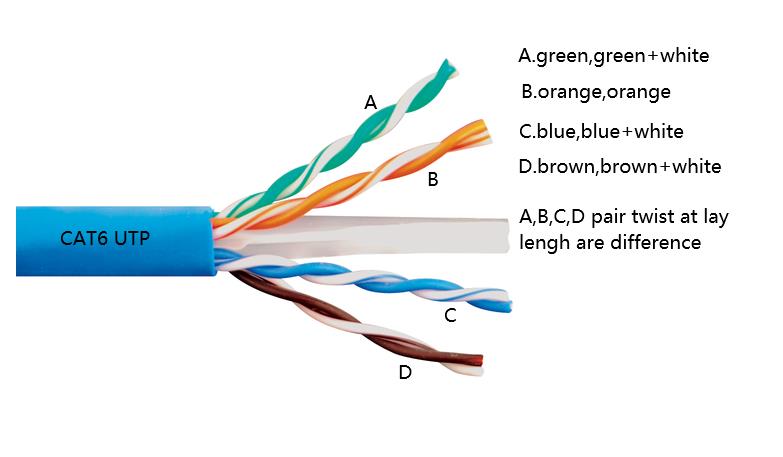

Cat 6 UTP Lan Cable

Factory Picture

Customer Cases

Dubai Lan cable project

Packing & Delivery

Film packing

Company Profile

00:00

02:00

Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution. Our vision: To make wire & cable manufacturing and using more humanized. Our target: More professional customer service, struggle for employees' dreams. We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions

Exhibitions ＆ Certifications

ShangHai Exhibition And Moscow Exhibition

Thailand Exhibition And India Exhibition

FAQ

1. who are we?
 We are based in Guangdong, China, start from 2017,sell to Africa(17.00%),Mid East(17.00%),Southeast Asia(16.00%),South America(15.00%),South Asia(10.00%),Eastern Asia(6.00%),Eastern Europe(4.00%),North America(3.00%),Southern Europe(3.00%),Northern Europe(3.00%),Oceania(2.00%),Western Europe(2.00%),Central America(2.00%). There are total about 5-10 people in our office.

 2. how can we guarantee quality?
 Always a pre-production sample before mass production;
 Always final Inspection before shipment;

 3.what can you buy from us?
 Drawing Machine/Stranding Machine/Cabling Machine/Extrusion Machine/Bunching Machine

 4. why should you buy from us not from other suppliers?
 1.10 year R&D working experience with over sea service 2.5 big LV/MV cable project over 5 million working experience 3.After service team has 30 country working experience 4. HOOHA team focus on the cable making and use solution supply chain.

 5. what services can we provide?
 Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
 Accepted Payment Currency:USD,EUR,CNY;
 Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
 Language Spoken:English,Chinese
